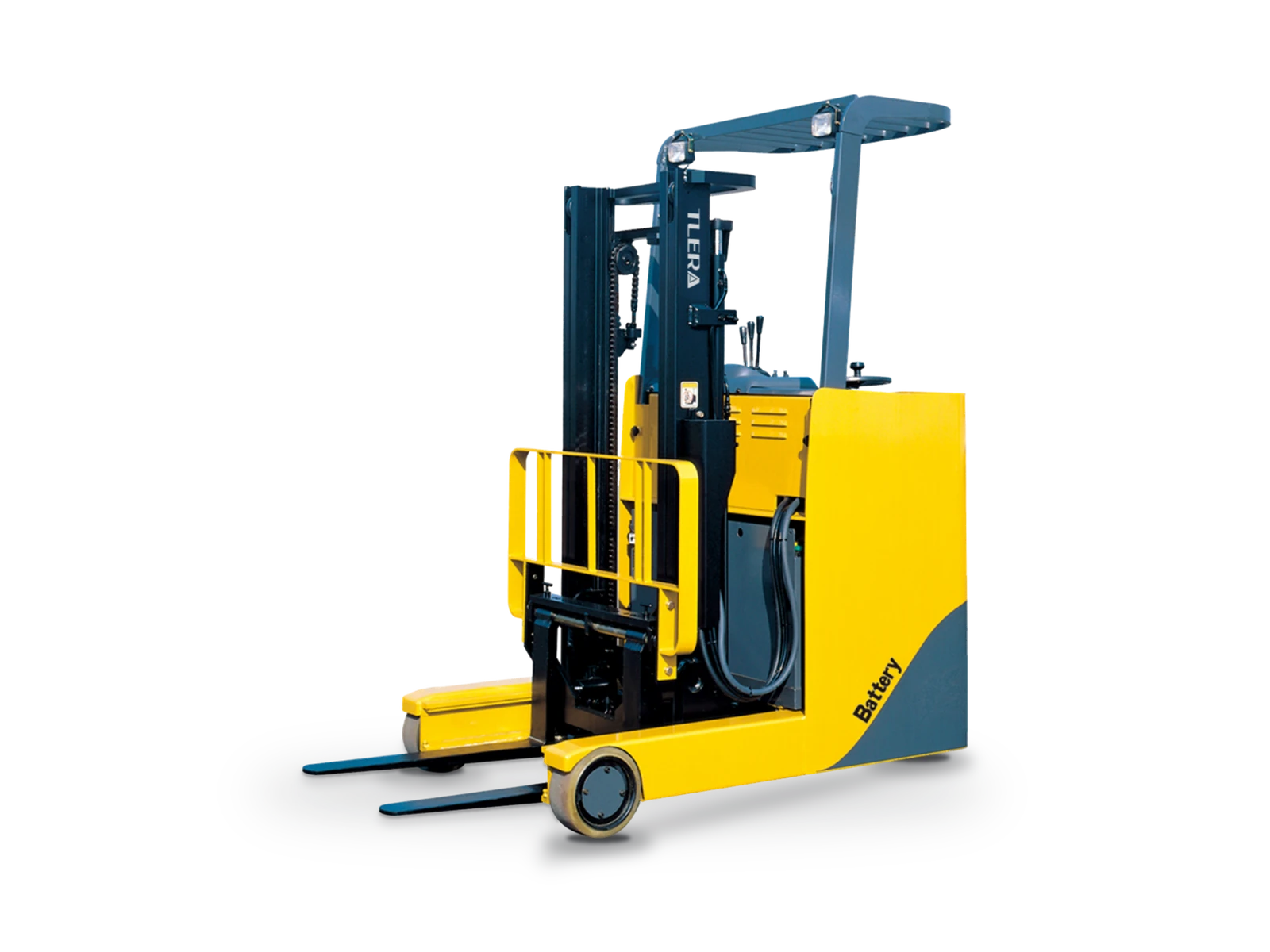

Representative image. The truck shown may differ from the listed specifications and may include optional equipment.
Class II · Reach Trucks
3,000–3,500 lb Lithium-Ion Double-Deep Reach Truck
A lithium-ion pantograph reach truck that reaches two pallets deep, for double-deep racking where fewer aisles mean more storage on the same floor.
Industries
Features
Double-reach pantograph arms extend the forks far enough to store and retrieve the rear pallet in double-deep rack bays.
Double-deep racking cuts the number of aisles in a building. An 80 in. turning radius keeps the truck maneuverable in the aisles that remain.
Travel speed follows lift height and steering angle, slowing the truck in turns and when the forks are raised high.
The lithium-ion battery needs no watering or acid checks, and it accepts quick top-up charges during breaks and shift changes.
Specifications
| Load capacity | 3,000–3,500 lb |
|---|---|
| Load center | 24 in. |
| Power | Lithium-ion |
| Operator position | Stand-on or seated (fold-down seat) |
| Tires | Polyurethane |
| Turning radius | 80 in. |
| OSHA class | Class II |
Typical values for the standard configuration. Capacities are rated at a 24 in. load center unless noted. Final specifications are confirmed on your written quote.
Standard Equipment
- Side-extraction battery
- Brushless AC motors and controller
- Electric power steering
- Fork tilt and sideshift
- Electronic parking brake
- Operator presence system
- Automatic slowdown in turns and at height
- Emergency disconnect switch
Options
- Battery charger
- High-capacity battery
- Alternative mast heights and fork lengths
- Height level selector
- Fork and load backrest cameras
- Blue pedestrian safety light
- Cushion tires
Warranty
Whichever comes first. Coverage, exclusions and the claims process are confirmed in writing on your quote. Warranty details
