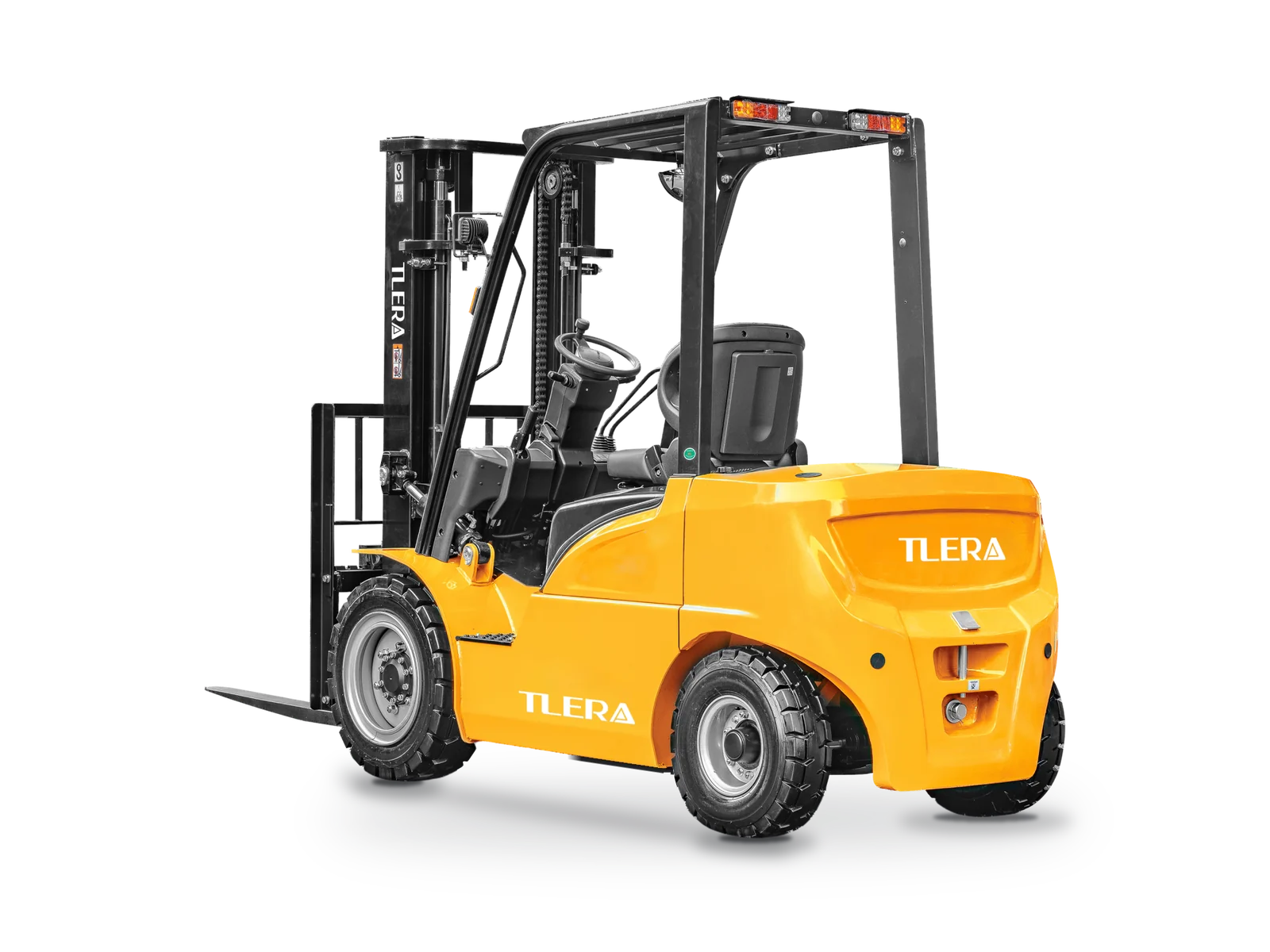

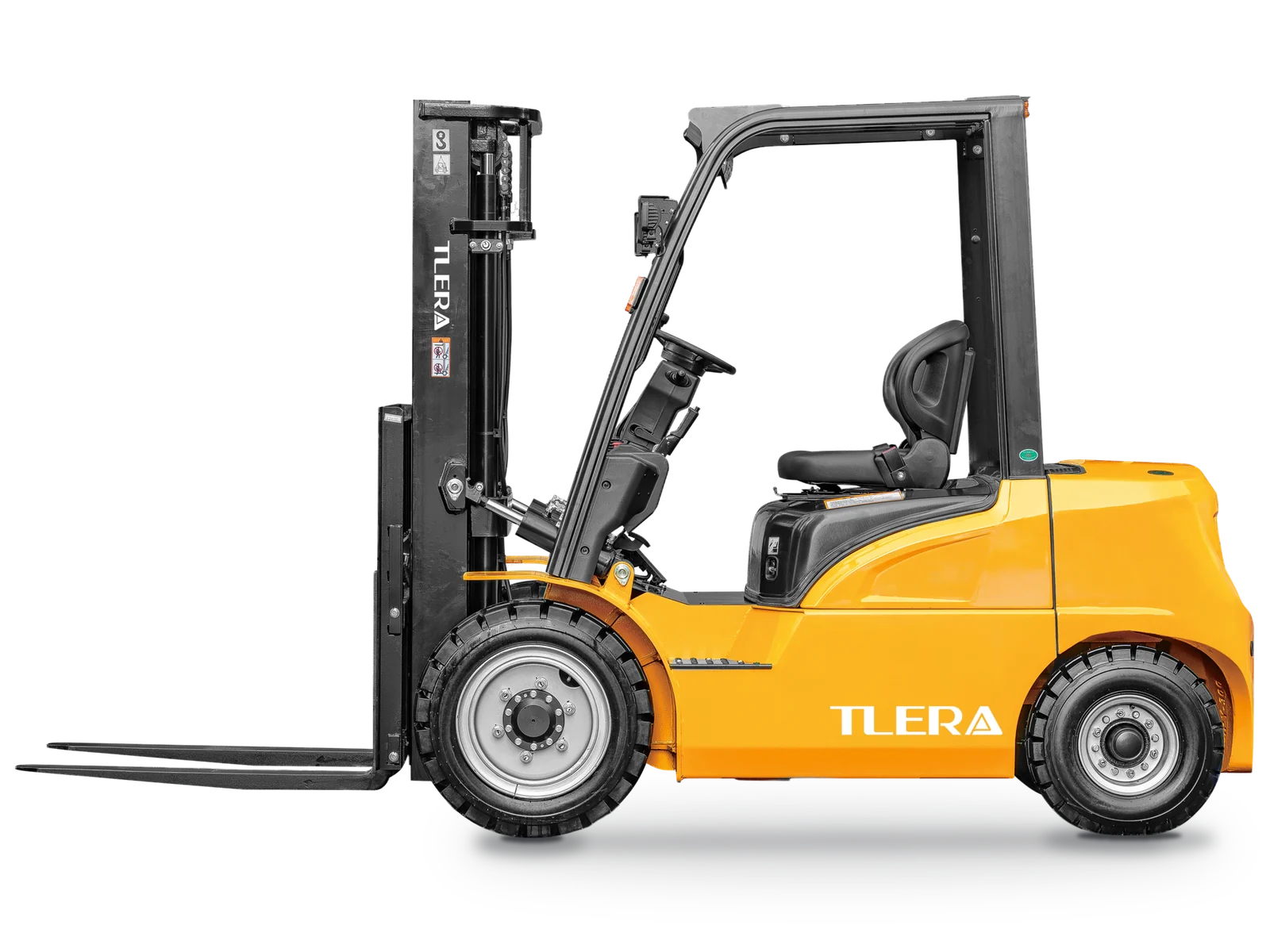

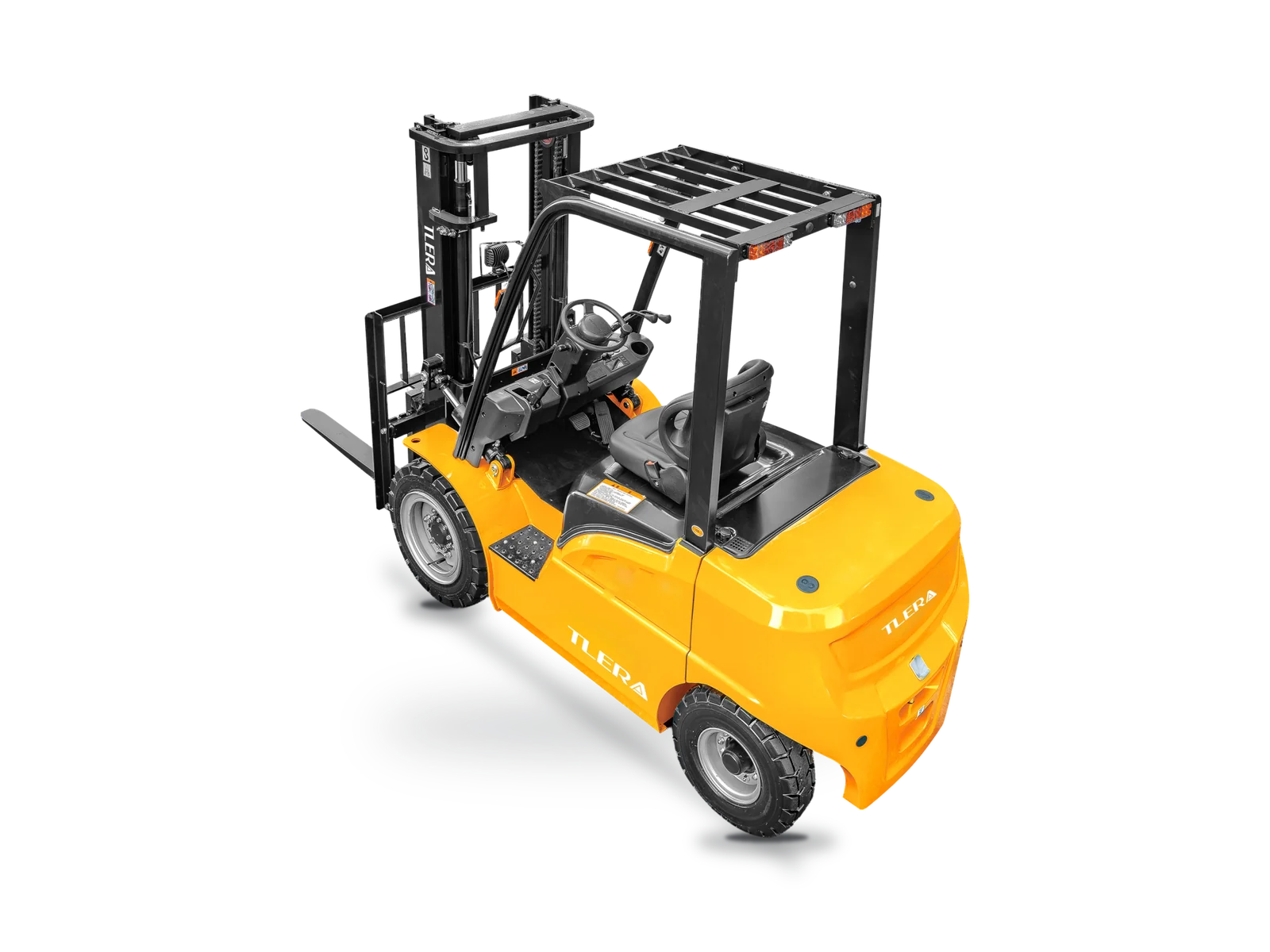

Drag to rotateRepresentative image. The truck shown may differ from the listed specifications and may include optional equipment.
Class I · Standard Capacity
TE50P Pneumatic Tire Electric Forklift
An 80V lithium-ion sit-down forklift on pneumatic tires, rated up to 5,000 lb, for yards, docks and mixed indoor-outdoor jobs that usually call for an engine-powered truck.
Documents
- Spec sheet (EN / ES)
- Warranty certificate
Sent with your quote, or on request.
Request documentsIndustries
Features
Tire size, steer axles and ground clearance are on par with comparable engine-powered trucks, and the truck carries an IPX4 water rating. Rough yards and rainy days are part of the job.
Travel and lift use 80V permanent magnet synchronous motors. Energy use is 15–20% lower than an equivalent asynchronous-motor truck doing the same work.
The LiFePO4 pack needs no watering or acid checks, and it can be topped up on breaks. A built-in heater keeps it working in cold weather.
A roomy operator area, adjustable seat and steering, a large brake pedal and a clear color display ease long shifts. Regenerative braking recovers energy as the truck slows.
Specifications
| Load capacity | Up to 5,000 lb |
|---|---|
| Load center | 24 in. |
| Power | 80V lithium-ion (LiFePO4) |
| Operator position | Sit-down |
| Tires | Pneumatic |
| Travel speed | Up to 11.2 mph (unladen) |
| Lift speed | Up to 100 ft/min (unladen) |
| Gradeability | Up to 25% (unladen) |
| Battery capacity | 230–460 Ah at 80V, depending on pack |
| OSHA class | Class I |
Typical values for the standard configuration. Capacities are rated at a 24 in. load center unless noted. Final specifications are confirmed on your written quote.
Standard Equipment
- 80V lithium-ion battery with BMS
- Battery heating module for cold weather
- Limited free-lift duplex mast
- Soft-landing mast lowering
- Dual hydraulic control valve
- LED headlights and taillights
- Color display with speed mode selection
- Emergency power disconnect
- Horn and reverse alarm
- Mechanical parking brake
Options
- Full-free duplex or triple mast
- Integral side shifter
- Third to fifth hydraulic functions
- Dual or solid pneumatic tires
- Larger-capacity lithium-ion battery
- On-board charger
- Blue pedestrian safety light
- Operator presence system (OPS)
- Cold storage package (to -22°F)
- Cab, windshield or rain roof
Warranty
Counterbalanced electric and LPG forklifts.
Lithium-ion traction batteries supplied with TLERA equipment.
Whichever comes first. Complete coverage, exclusions and the claims process are set out in the written warranty certificate for your equipment. Ask for the applicable certificate before you buy. Warranty details
